VR5-C 2路天花板喇叭

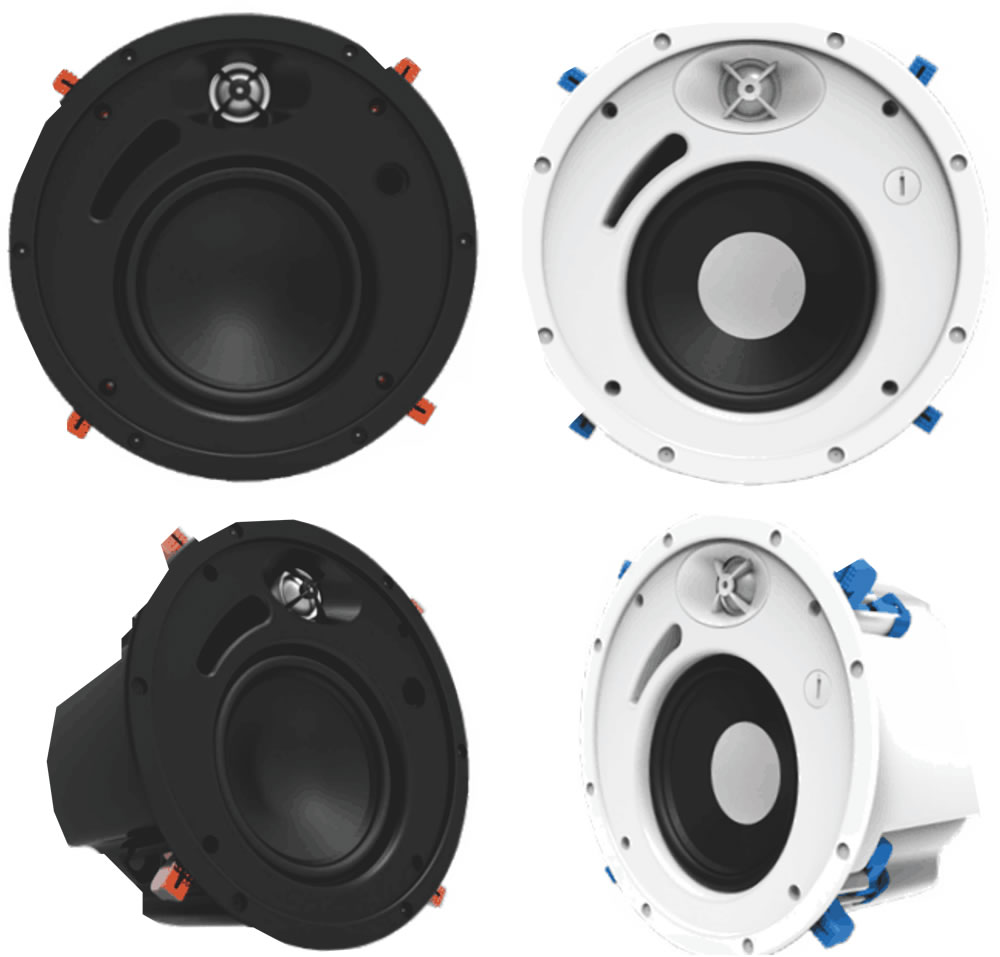

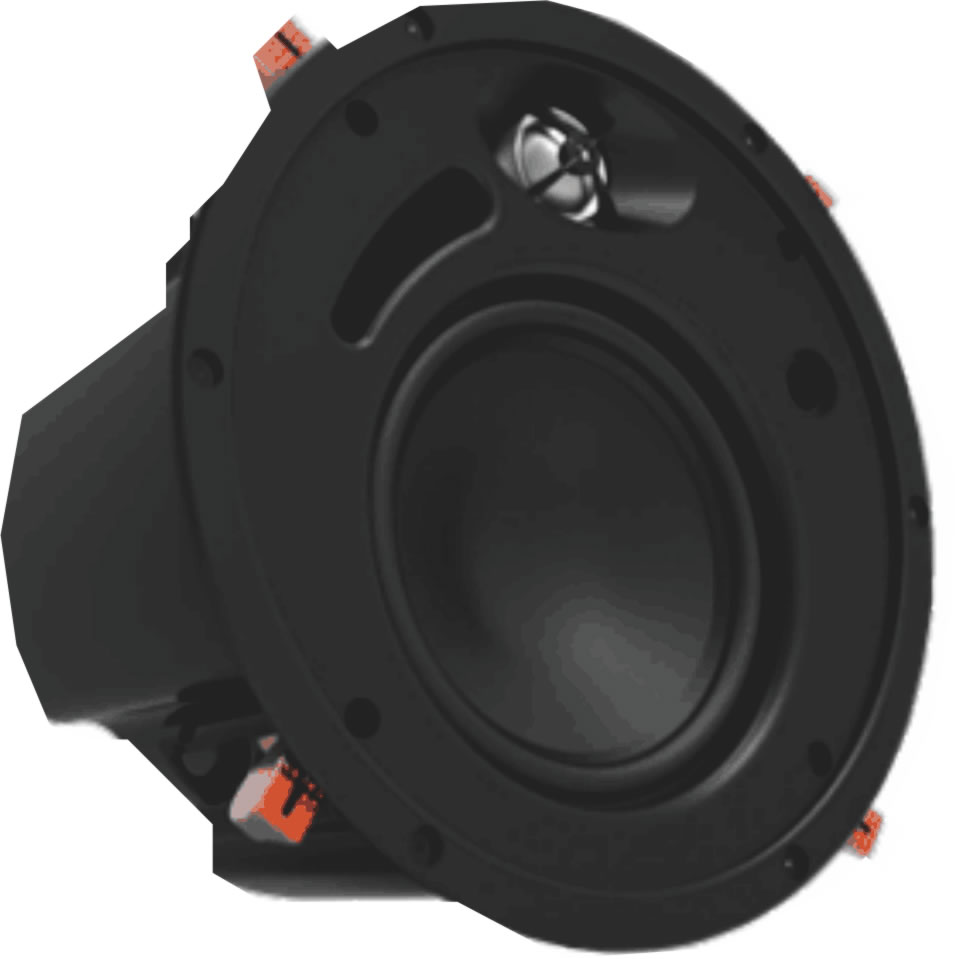

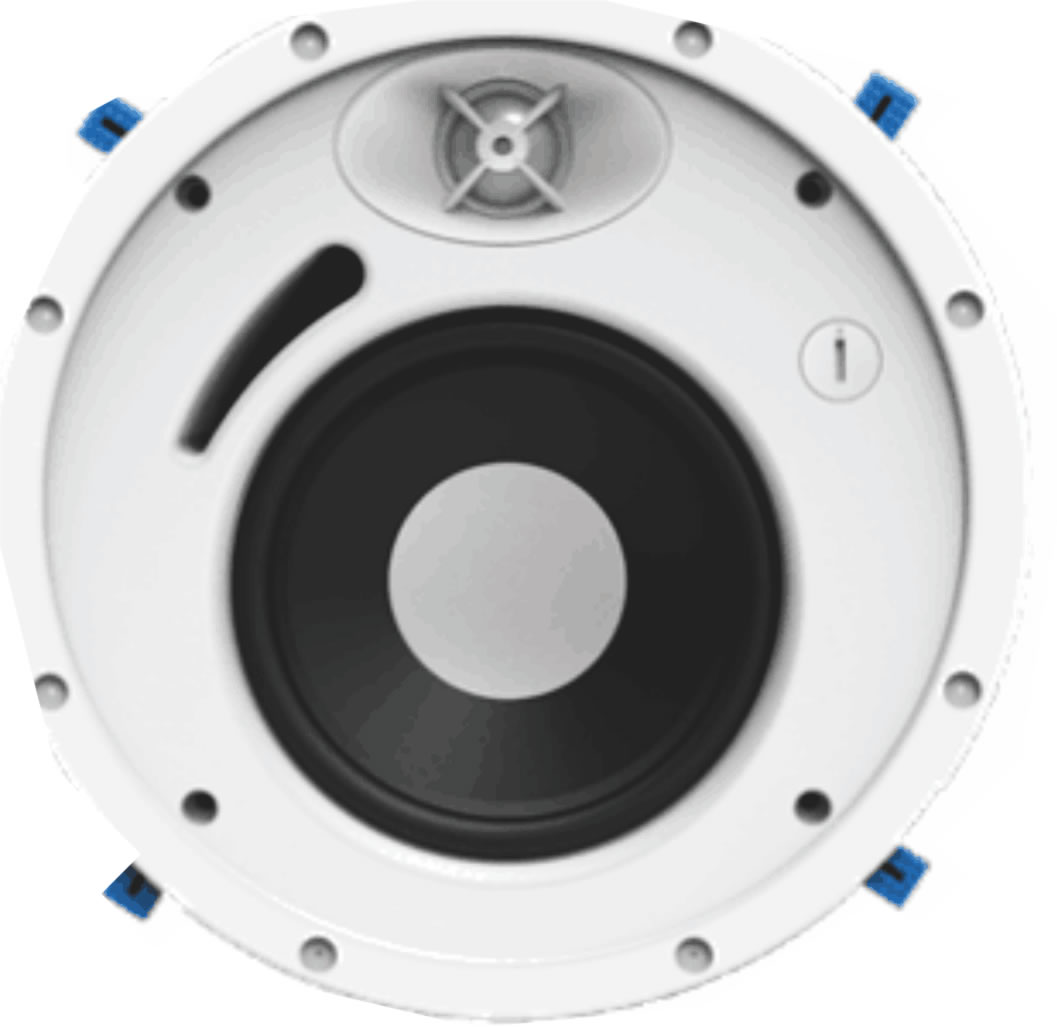

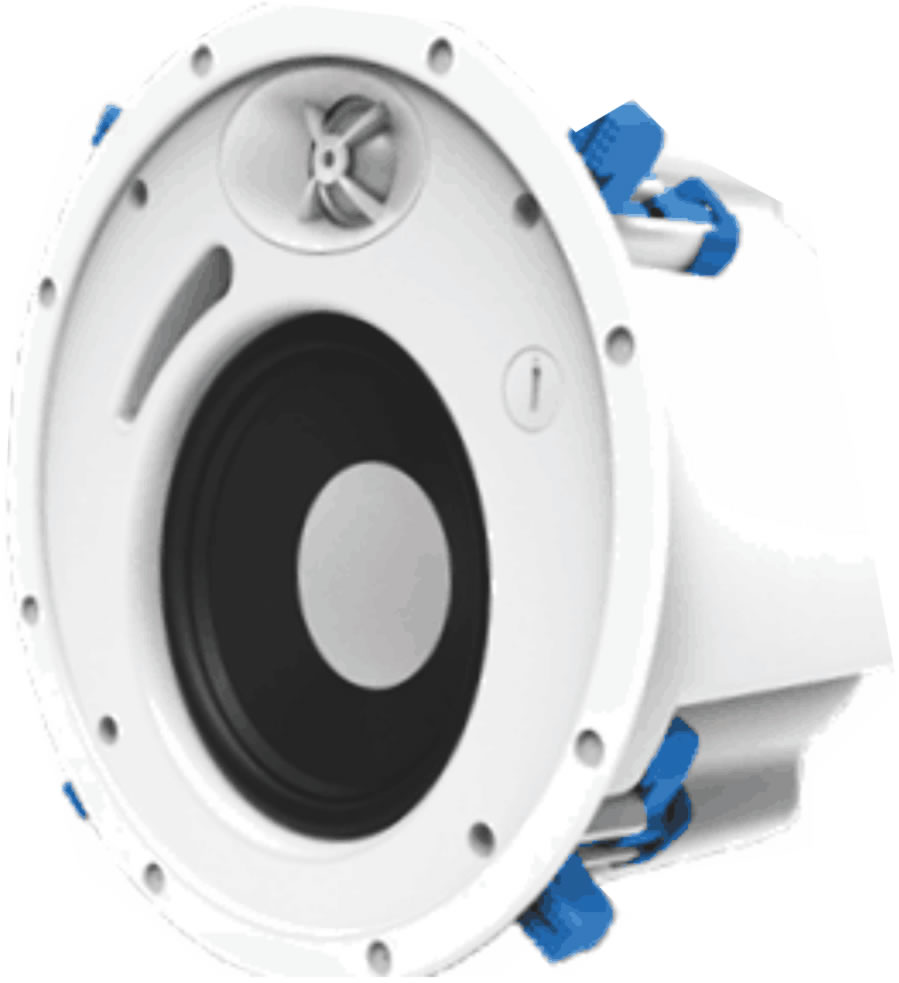

VR5-C 2 way in-ceiling speaker
5.25" polypropylene woofer, 1" silktweeter. 5-70 watts, 8 ohms/70V/100V.
| 喇叭单元 | |
|---|---|
| 高音单元 | 1″(25mm) Aluminum, swivel,ferrofluid-cooled |
| 低音单元 | 5.25″(133mm) Injected polypropylene |
| 喇叭类型 | |
| 扬声器类型 | In-ceiling, 2 way |
| 外观形状 | |
| 颜色 | White |
| 格栅面板 | Perforated steel, White |
| 长度 | D 6.3" (160mm) |
| 宽度 | W 7.8" (198mm) |
| 高度 | H 9.3" (235mm) |
| 电气性能 | |
| 额定功率 | 5 watts minimum; 70 watts maximum |
| 灵敏度 | 88 dB SPL (2.83V/1 meter) |
| 频率响应 | 60Hz – 20K Hz±3dB |
| 阻抗 | 8 ohms |
