CPD800 双音圈立体声天花板

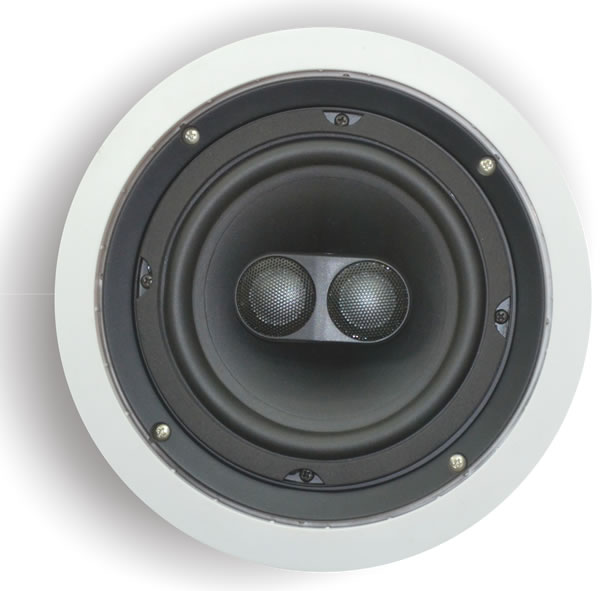

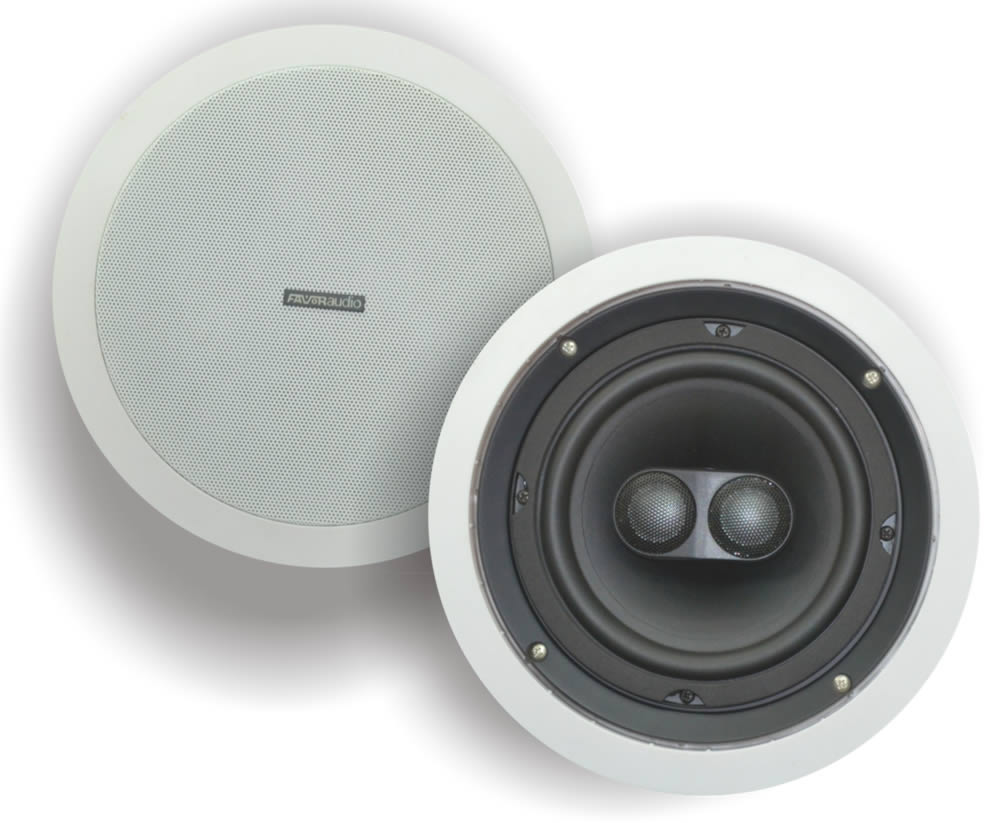

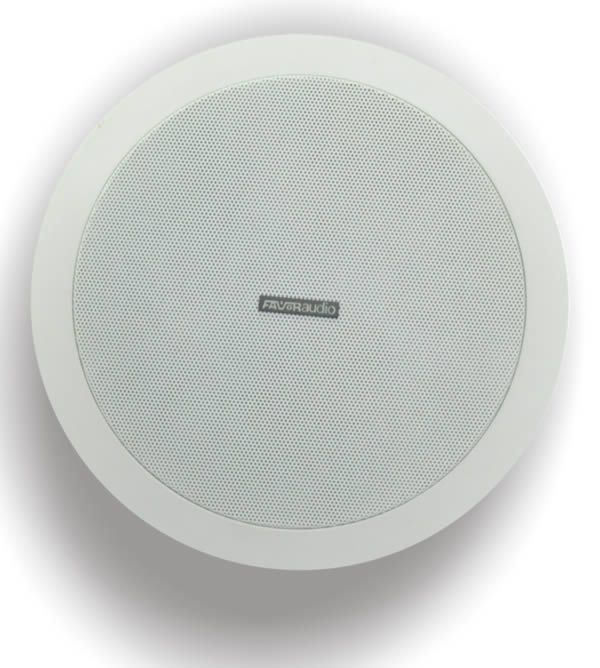

CPD800 Dual Voice Coil Stereo Inceiling
8" polypropylene woofer, 0.75" silk soft dome tweeter. 5-100 watts 8 ohms.
| 喇叭单元 | |
|---|---|
| 高音单元 | Dual 0.75″(20mm) Silk,ferrofluid-cooled |
| 低音单元 | 8″ (203mm) polypropylene |
| 喇叭类型 | |
| 扬声器类型 | In-ceiling, dual voice coil speaker |
| 外观形状 | |
| 颜色 | White |
| 格栅面板 | Perforated Aluminum, White |
| 长度 | D 9.8" (248mm) |
| 宽度 | W 11" (279mm) |
| 高度 | H 3.5" (90mm) |
| 电气性能 | |
| 额定功率 | 5 watts minimum; 100 watts maximum |
| 灵敏度 | 90 dB SPL (2.83V/1 meter) |
| 频率响应 | 40Hz – 20K Hz±3dB |
| 阻抗 | 8 ohms |
